Lus piav qhia luv luv:

GH110 Roj Hmab Crawler Tus kheej-propelling Ib nrab-feeding Ua ke Rice Harvester

Gookma GH110 Roj Hmab Crawler Tus Kheej Ib Nrab Pub Noj Ib Nrab Sib Nqus Rice Harvester yog cov khoom siv thev naus laus zis nrog cov cuab yeej txawj ntse ywj pheej.Lub tshuab sau qoob loo muaj ntau tshaj 10 kev patents nrog rau 3 invention patents.Nws lub hauv paus ntsiab lus kev khiav hauj lwm thiab kev tsim qauv yog ingenious.Nws muaj qhov pom tseeb zoo hauv qhov pom kev, yoog raws thiab kev ua haujlwm ntawm tus nqi, yog cov nplej qoob loo uas tsim nyog rau kev nthuav dav tam sim no.


Kev piav qhia dav dav

Khoom cim npe

Peb qhov zoo yog txo tus nqi, pab pawg neeg tau txais txiaj ntsig, QC tshwj xeeb, cov chaw tsim khoom ruaj khov, cov kev pabcuam zoo tshaj plaws rau Kev Tsim Kho Kev Ua Liaj Ua Teb Cov Cuab Yeej Mini Rice Harvester Muab Cov Paddy Harvester rau Muag, Yog tias koj txaus siab rau ib qho ntawm peb cov khoom, xyuas kom tseeb tias koj tsis muaj dab tsi. tos kom tau tuav peb thiab ua thawj kauj ruam los tsim kom muaj kev sib raug zoo hauv tuam txhab.
Peb qhov zoo yog txo tus nqi, pab pawg neeg tau txais txiaj ntsig, QC tshwj xeeb, cov chaw tsim khoom ruaj khov, cov kev pabcuam zoo tshaj plaws rauTuam Tshoj Sib xyaw Harvester thiab Harvester, Peb zoo siab tos txais koj tuaj xyuas peb lub tuam txhab, lub Hoobkas thiab peb chav ua yeeb yam tso tawm ntau yam khoom lag luam uas yuav ua tau raws li koj qhov kev cia siab, lub sijhawm no, nws yooj yim mus xyuas peb lub vev xaib, peb cov neeg ua haujlwm muag yuav sim lawv cov kev pabcuam zoo tshaj plaws rau koj.Yog tias koj xav paub ntau ntxiv, nco ntsoov tsis txhob yig tiv tauj peb ntawm E-mail lossis xov tooj.

Specifications

Lub npe Ib nrab pub mis sib xyaw nplej Harvester
Qauv GH110
Qauv qauv Crawler self-propelling

Cav

Qauv ZH1110/ZS1110/H20
Hom Ib-lub tog raj kheej plaub-stroke kab rov tav dej-txias (Condenser txias cav xaiv tau)
Hwj chim 14.7 KW TSI
Ceev 2200 rpm ib
Zuag qhia tag nrho qhov ntev hauv kev ua haujlwm (L * W * H) 2590 * 1330 * 2010mm (102 * 52 * 79 nyob rau hauv)
Qhov hnyav 950kg (2094 lb)
Dav ntawm lub rooj txiav 1100mm (43 nyob rau hauv)
Pub kom muaj nuj nqis 1.0kg/s (4.4lb/s)
Yam tsawg kawg nkaus hauv av clearance 172mm (6.8 nti)
Theoretical kev khiav hauj lwm ceev 1.6-2.8km / h (3250-9200ft / h) ceev
Av av tob ≦200mm (7.9 nti)
Tag nrho poob ≦ 2.5%
Khoom noj khoom haus ≦1% (nrog xaiv cua)
Kev tawg ≦ 0.3%
Kev tsim tawm ib teev 0.08-0.15 hli / h
Roj noj 12-20kg/ha (26-44lb/ha)
Hom cutter Reciprocating hom

Thresher nruas

Ntau 2
Main nruas hom Stripping txoj siv
Main nruas dimension (perimeter * dav) 1397 * 725mm (55 * 29 nyob rau hauv)
Hom concave screen Daim phiaj hom

Ntxuam

Hom Centrifugal
Txoj kab uas hla 250
Ntau 1

Crawler

Specification (pitch tooj * suab * dav) 32 * 80 * 280mm (32 * 3.2 * 11 nyob rau hauv)
Ntsuas 610mm (24 nyob rau hauv)
Hom kis tau tus mob Neeg kho tshuab
Nres hom Lub puab tsaig sab hauv
Re-thresher hom Axial flow spiked
Hom kev sau qoob loo Phau ntawv sau qoob

Technical parameters raug hloov pauv yam tsis tau ceeb toom ua ntej.

● Agile Mobility

● Me me rau kev ua haujlwm me me

● Ib nrab pub, khaws cov hlua

● Pub Ntau: 1.0kg/s (4.4lb/s)

● Muaj Peev Xwm Ntau Lawm: 0.08-0.15ha / h

1

GH110 Ib nrab pub mis sib xyaw nplej Harvester

Nta thiab qhov zoo:

1.Gookma GH110 ib nrab pub mis ua ke nplej qoob loo yog lub teb chaws loj kev txhawb nqa ntawm cov tshuab ua liaj ua teb.

2.Lub tshuab yog ntawm qis-txiav stubble, yoog raws hauv kev ua haujlwm,

zcxc 3

3.Nws yog qhov me me, lub teeb yuag, yooj yim hauv kev tswj xyuas, hloov pauv hloov.Nws yooj yim hauv disassemble thiab yooj yim rau kev txij nkawm.

4.Nws tuaj yeem ua haujlwm nyob rau hauv ob qho tib si qhuav thiab paddy teb, haum rau kev sau qoob loo hauv thaj chaw tiaj thiab thaj chaw toj siab.

asdas 2

5.Nws yog compact qauv, threshes ob zaug.Thawj threshing integrates threshing thiab conveying, thiab thib ob threshing integrates threshing thiab sundries tshem tawm.Tag nrho cov threshing nyhuv yog zoo.

zcxc 4

6.Nws yog kev siv roj tsawg thiab kev ua haujlwm siab.

7.Lub tshuab khaws cov straws rau cov ntawv thov rov ua dua.

zcxc 6

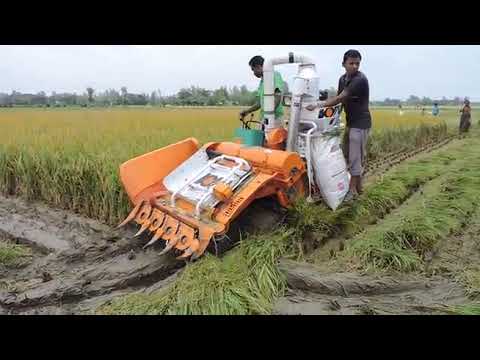

Daim ntawv thov Case

Gookma me me ib nrab pub mis ua ke cov nplej qoob loo tsim nyog rau tsev neeg siv thiab rau kev lag luam me, nws tau muag zoo thiab nrov heev hauv kev lag luam hauv tsev thiab txawv teb chaws, thiab tau txais lub koob npe nrov ntawm cov neeg siv khoom.

zcxc 5
asdas 6
zcxc 7
